Plugin Manifest Configuration

The file plugin-manifest.json in the widget directory holds the configuration details of widgets. Here’s how you can define the keys:

Locale

Locale is the language supported. Currently, Zoho Inventory supports only English (“en”).

Key Type Value
locale* JSONArray en

Service

Service is the product for which the widget is created. In this example, the product is Finance.

Key Type Value
service* String FINANCE

Module

Currently, Zoho Inventory supports the widgets module.

Key Type Value
modules* JSONObject "widgets": [
 {
   "location": "invoice.detail.sidebar",
   "url": "/app/widget.html",
   "name": "Zinventory Extension",
   "logo": "/app/images/app_icon.svg",
 }
]

Widgets

Details about the widgets will be captured here. It holds an array of objects. You can combine two or more widgets to create a new widget as well.

Key Type Object Details
widget JSONArray Key Type Description Value
name* String Name of the widget.
location* String Location in the product where the widget has to be rendered.Note:The location must be unique. invoice.list.sidebar
invoice.details.sidebar
invoice.creation.sidebar
dashboard.widget
background
application.allpages.sidebar
(Other supported locations)
url* URL Path of the file that loads the widget. For internally hosted widgets, mention a relative URL of the widget.For externally hosted widgets, mention the absolute URL of the widget.
logo URL Logo of the widget.
widget_type String open the widget as a pop instead of sidebar, also need to invoke resize sdk if widget is of type modal to set the popup size modal

Locations

This key defines the different locations in Zoho Inventory where widgets can be positioned/rendered. You can have upto 10 widgets per location.

Zoho Inventory supports the following locations:

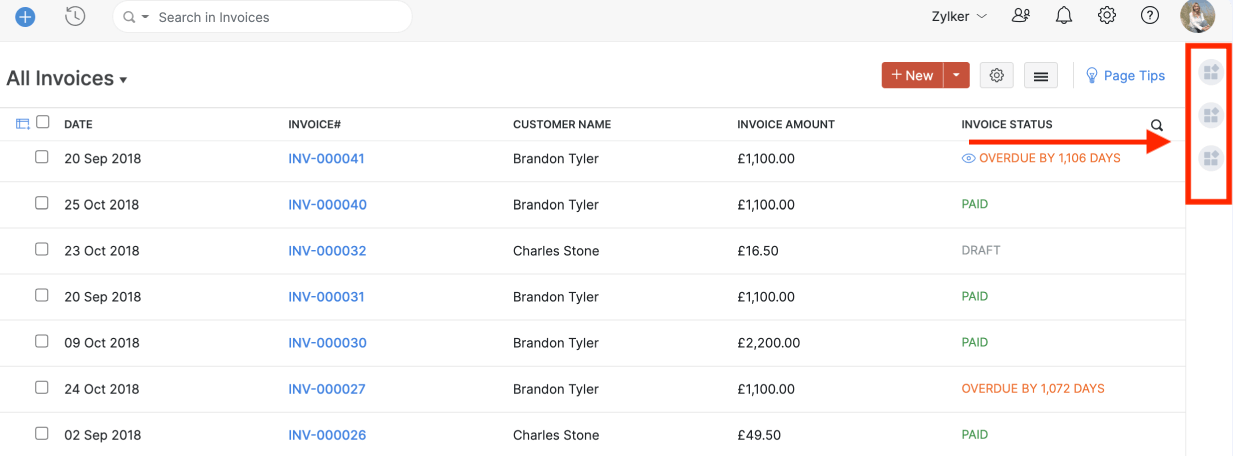

Right sidebar in the invoices list page:

invoice.list.sidebar

The widget is displayed in the list page of the Invoices module.

List page

Other supported location are:

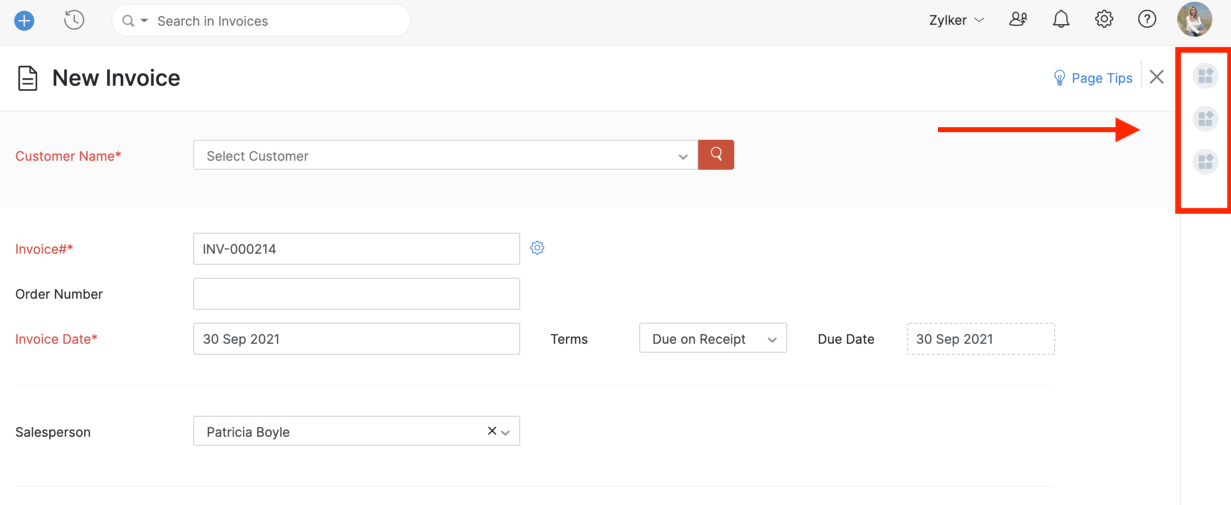

Right sidebar in the invoice creation page:

invoice.creation.sidebar
Creation page

Other supported location are:

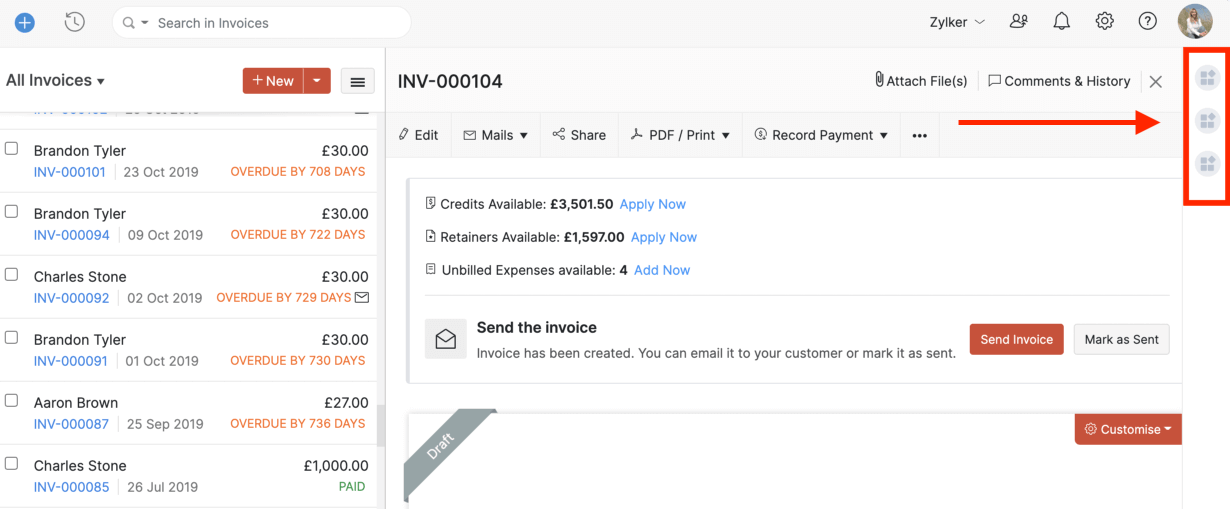

Right sidebar in the invoice details page:

invoice.details.sidebar
Details page

Other supported location are:

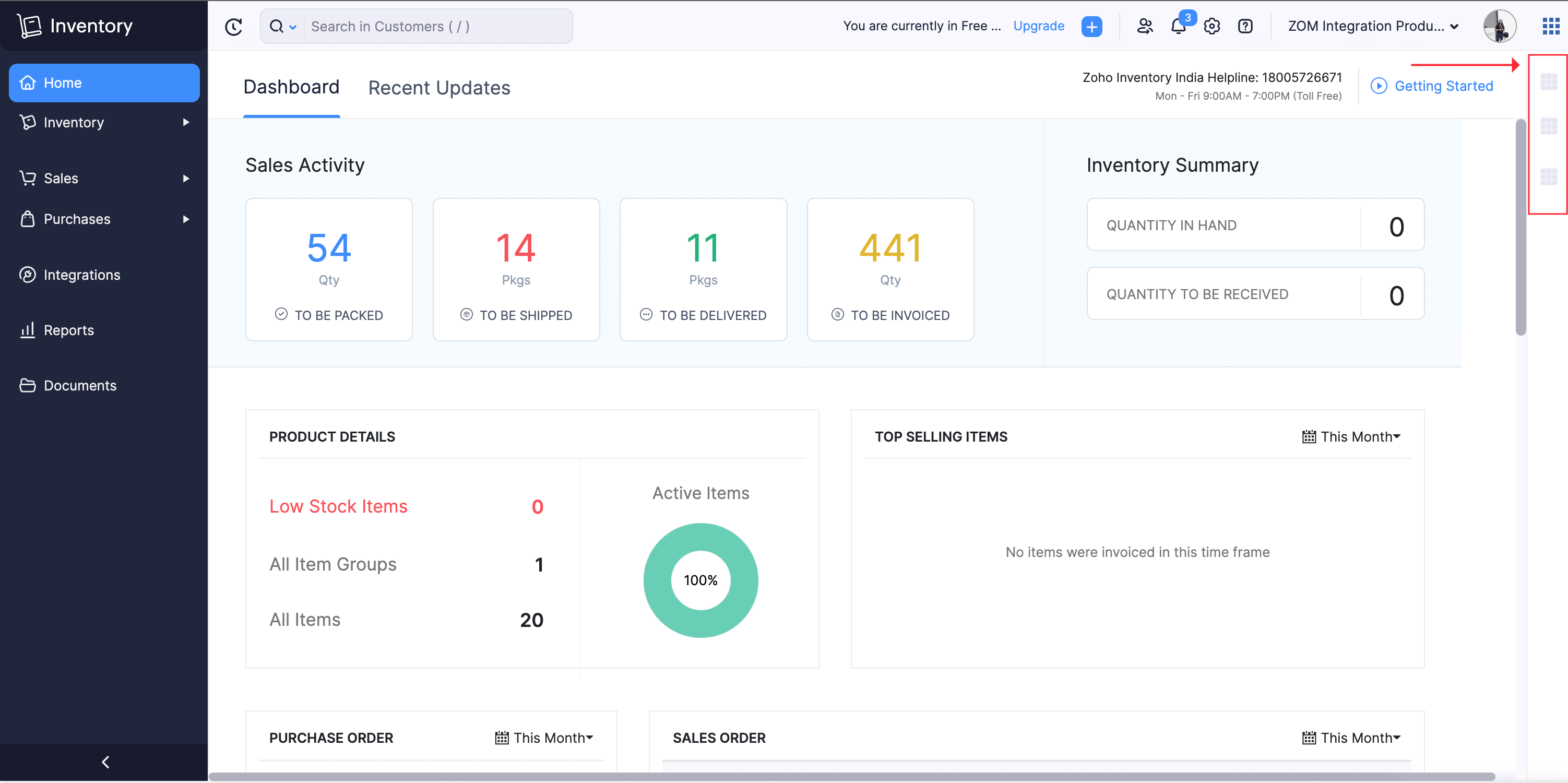

application.allpages.sidebar

The widget can be displayed in the sidebars of all pages.

All pages

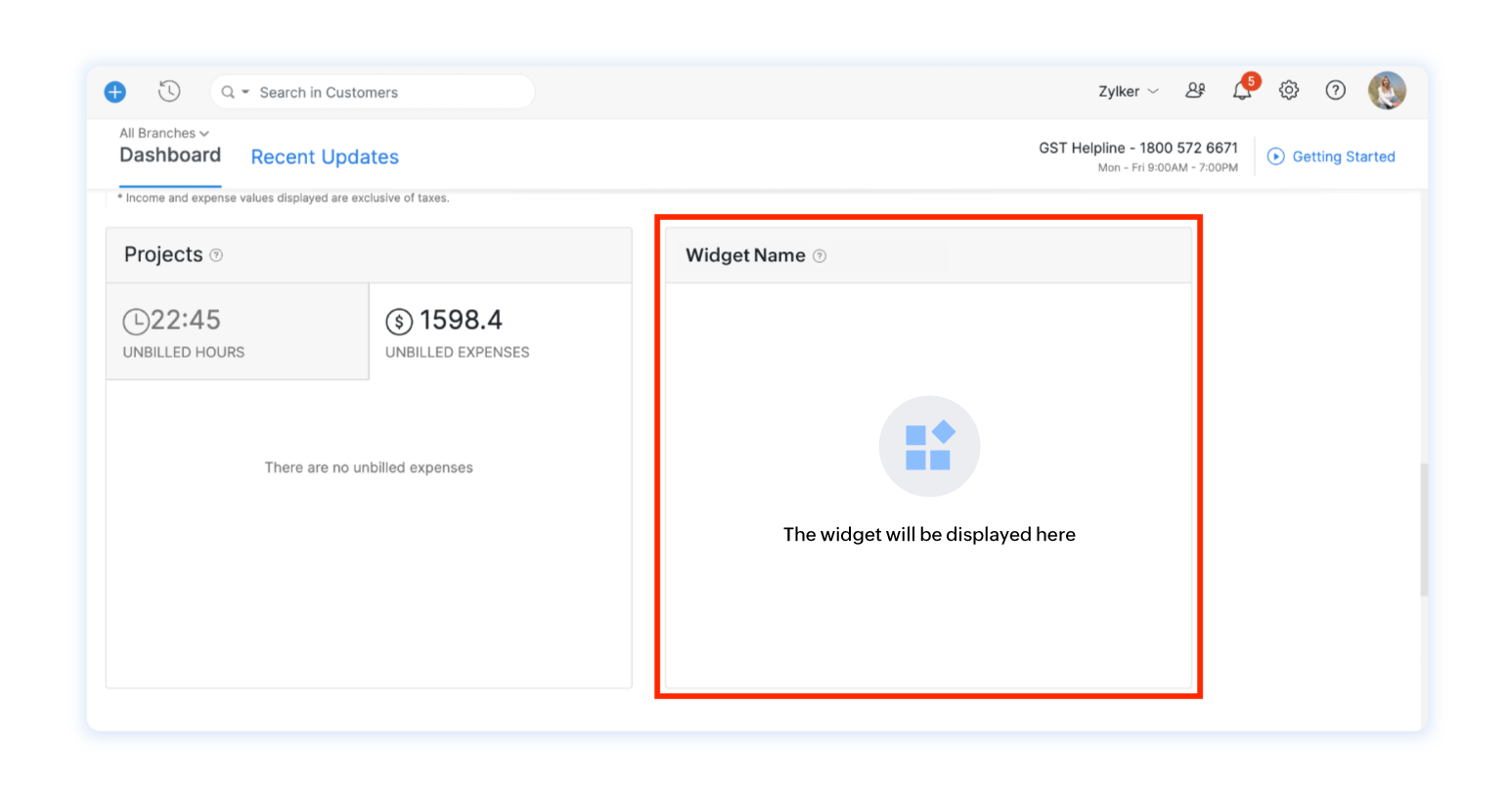

Dashboard:

dashboard.widget

Dashboard

Run widgets in the background:

background

These widgets can access the API events which are broadcasted from the current viewing page and react accordingly.

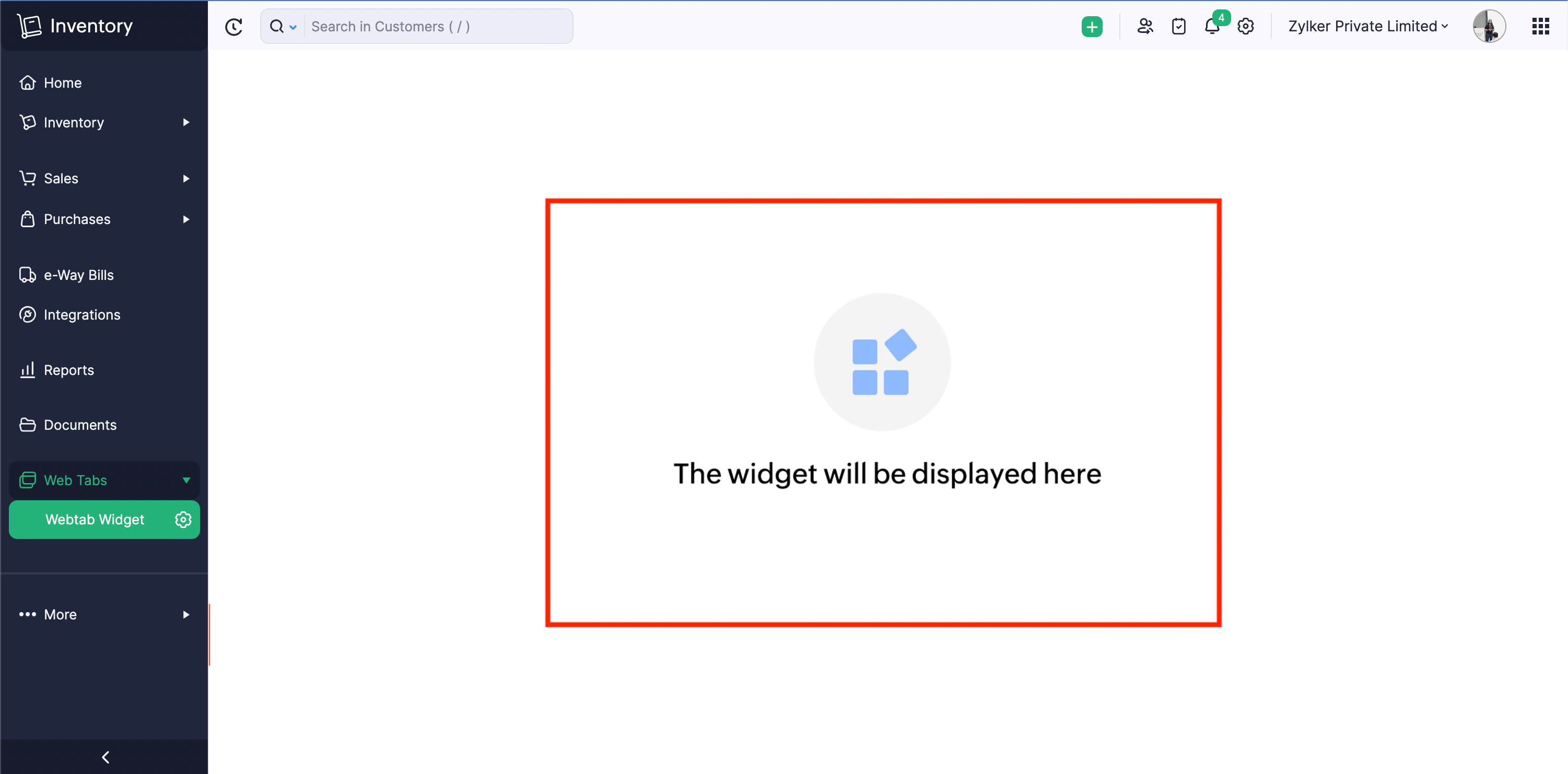

Web Tabs:

These widgets will be displayed under the Web Tabs section in the left sidebar.

webtab

Webtab

Used Connections

Third-party authentication and integration can prove to be challenging. To make authenticating easy, we support Connections. Connections is a built-in Zoho service used for authenticating third-party services using OAuth 2.0 protocol. You can easily establish a connection with a third-party service if the service has already been configured. You can find the list of available services by navigating to Zoho Inventory and then selecting Developer Space. From Connections, select Predefined Services. Learn how to add a custom connection.

Third-party authentication using connectors:

Widgets created for third-party services need a connector to establish a connection with Zoho Inventory. You can either connect to an available third-party service or request a new one.

To establish a connection with an available third-party service:

Create a new connection. The JSON script generated in the connections page will be used in the usedConnections key of the plugin-manifest.json file.

Key Type Object Details
usedConnections JSONArray Key Type Description Value
connectionLinkName String Link name generated for the third-party service connection Enter the value of connectionLinkName generated as JSON while establishing the connection.
connectionName String Name of the connection Enter the value of connectionName generated as JSON while establishing the connection.
serviceName String Name of the third-party service Enter the value of serviceName generated as JSON while establishing the connection.
UserDefinedService Boolean Is the connection established with a custom service?
scope JSONArray Access privilege of the user/admin.
userAccess Boolean Authorization can be performed, as a one time setup by the organization's administrator. As an individual setup by each user of the organization. Mention 'False' if authorization has to be performed by administrator.Mention 'True' if authorization has to be performed by every user in the org.

cspDomains

You can mention the domains that needs to be added in the Content-Security-Policy header to control the resources that the widget is allowed to load.

Key Type Value
cspDomains JSONObject [
 {
   "connect-src": ["trusted.com"]
 }
]
