Widget Section Element: Divider

The divider element can act like a separator between content in a section or even to indicate a difference between two sections.

Syntax:


{
type : "divider"
}

Attributes:

Attribute NameValueDescription
typedividerSpecifies the type of widget element. Value for the type key is 'divider'.

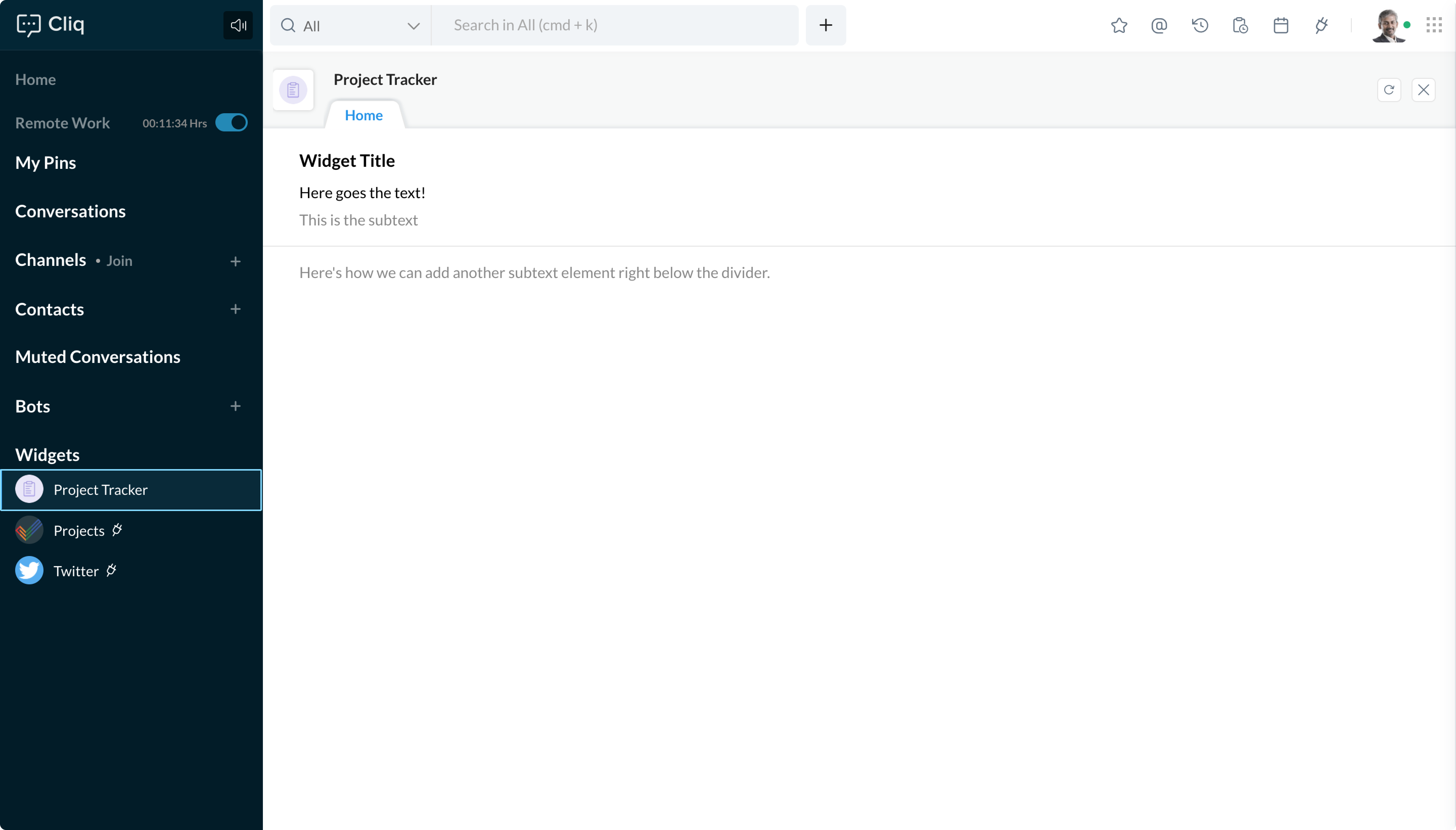

Example: Adding a divider within one section



elements = list();
elements.add(
    {
        "type":"title",
        "text":"Widget Title"
    }
);
elements.add(
    {
        "type":"text",
        "text":"Here goes the text!"
    }
);
elements.add(
    {
        "type":"subtext",
        "text":"This is the subtext"
    }
);
elements.add(
    {
        "type":"divider"
    }
);
elements.add(
    {
        "type":"subtext",
        "text":"Here's how we can add another subtext element right below the divider."
    }
);
sections = list();
sections.add(
    {
        "id":1,
        "elements":elements
    }
);
return {
    "type":"applet",
    "tabs":[
        {
            "label":"Home",
            "id":"homeTab"
        }
    ],
    "active_tab":"homeTab",
    "sections":sections
};

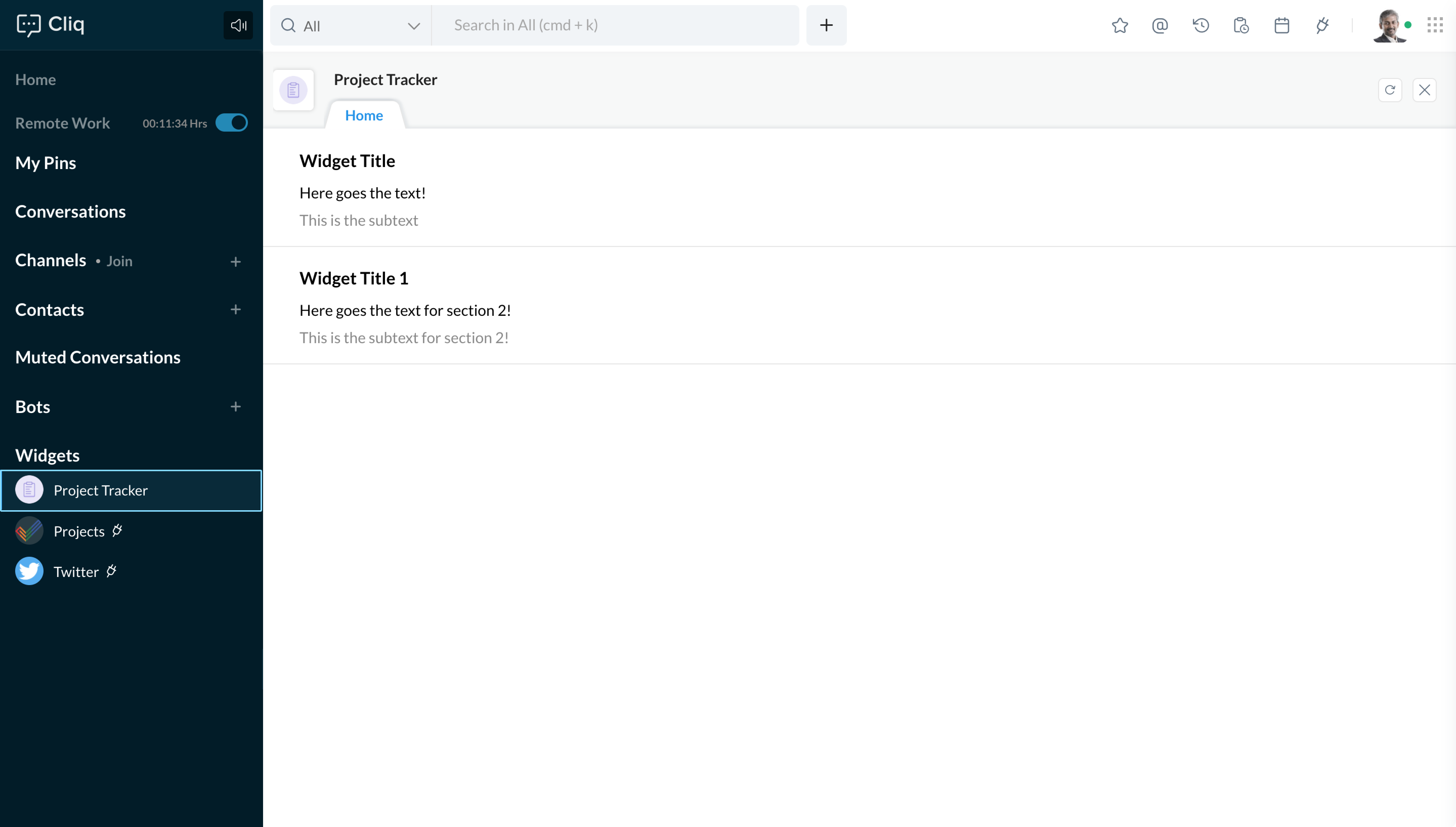

Example: Adding a divider between two sections


sections = list();
elements1 = list();
elements1.add(
    {
        "type":"title",
        "text":"Widget Title"
    }
);
elements1.add(
    {
        "type":"text",
        "text":"Here goes the text!"
    }
);
elements1.add(
    {
        "type":"subtext",
        "text":"This is the subtext"
    }
);
elements1.add(
    {
        "type":"divider"
    }
);
sections.add(
    {
        "id":1,
        "elements":elements1
    }
);
elements2 = list();
elements2.add(
    {
        "type":"title",
        "text":"Widget Title 1"
    }
);
elements2.add(
    {
        "type":"text",
        "text":"Here goes the text for section 2!"
    }
);
elements2.add(
    {
        "type":"subtext",
        "text":"This is the subtext for section 2!"
    }
);
elements2.add(
    {
        "type":"divider"
    }
);
sections.add(
    {
        "id":2,
        "elements":elements2
    }
);
return {
    "type":"applet",
    "tabs":[
        {
        "label":"Home",
        "id":"homeTab"
        }
    ],
    "active_tab":"homeTab",
    "sections":sections
};
